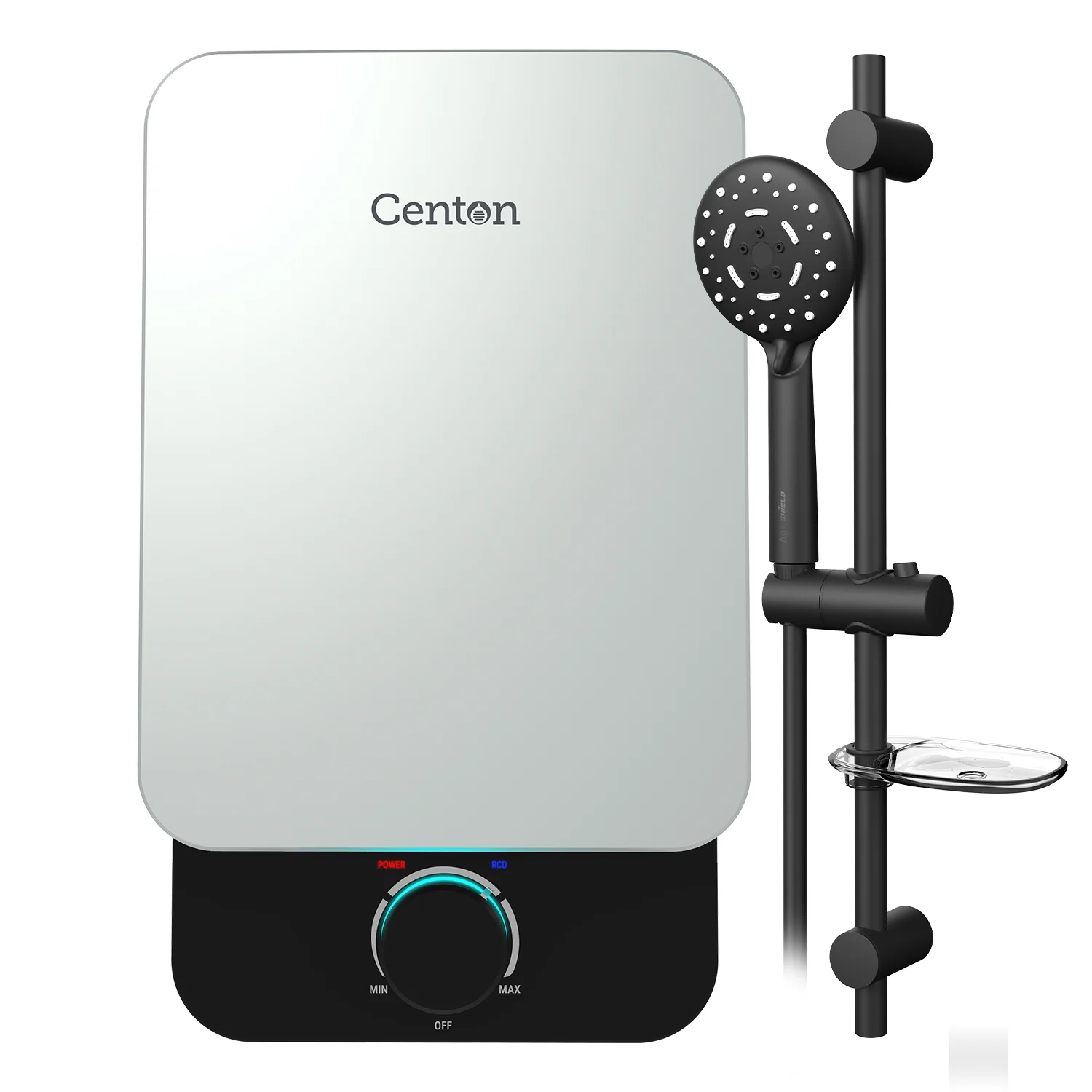

Meet CENTON first Extra Hot 4.5kW model – Orion Series! Comes with a romantic LED Illuminated Knob, Pump Activator function, Ag+ Shield 5-Spray Shower Handset, and many more premium features!

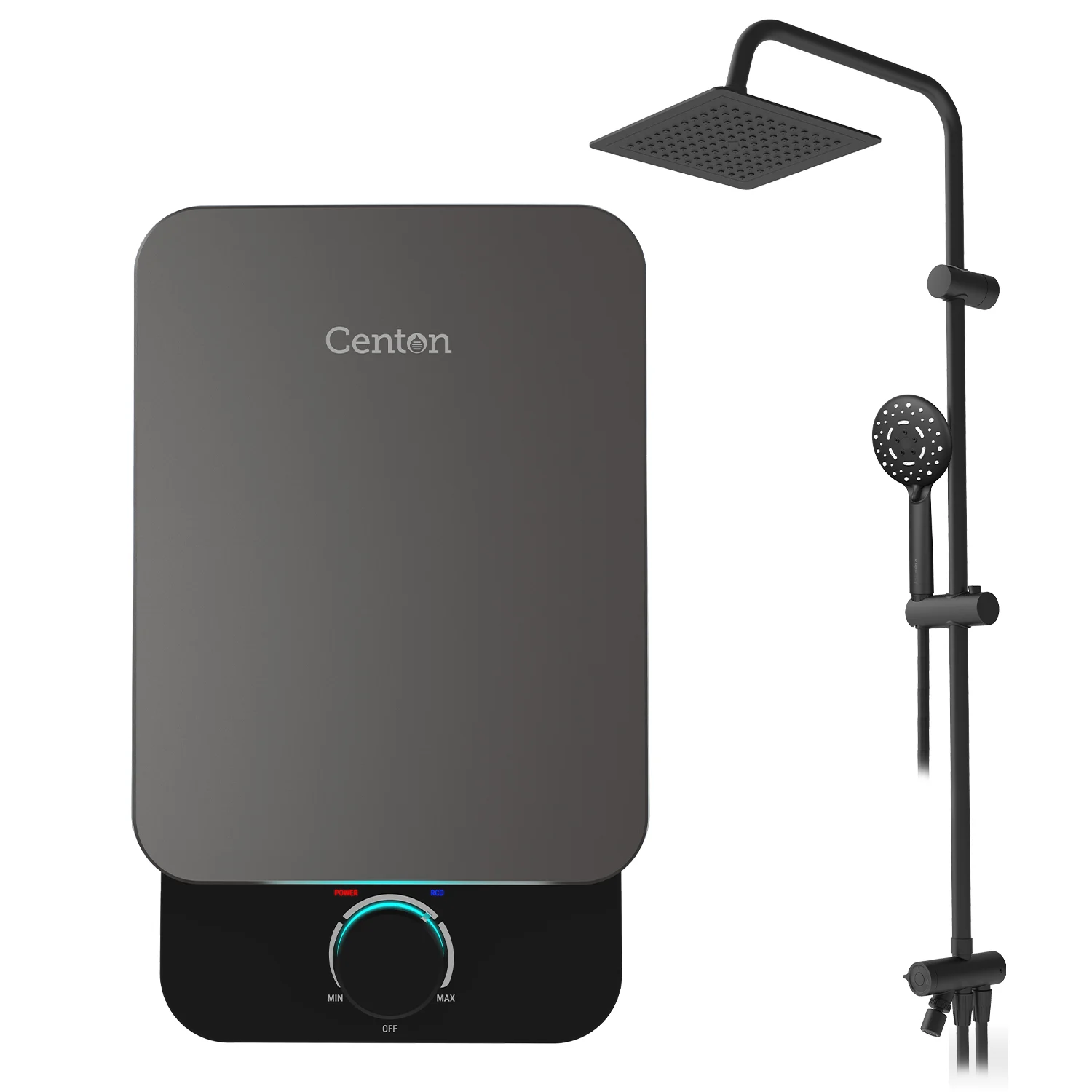

This new Matte Black Rain Shower Set comes with an additional Faucet outlet for you to wash up before prayers with sensational warm waters.
FEATURES:
– Bi-color LED Illuminated Knob | For intuitive operation with a modern aesthetic.
– [NEW] Pump Activator | Momentarily jump starts the Built-in DC Silent Pump when the bathroom’s water flow is too low to turn on the water heater’s flow switch.
– Rainshower with Faucet Diverter | extra way for you to wash up conveniently (eg. for wuduk usage). – AG+ Shield Multi-Spray Hand Set | 5 Shower Hand Set selection with anti-bacterial function allows users to select preferred shower spray pattern for optimum shower sensation.– Built-in DC Silent Pump | Silent yet powerful. This built-in silent pump comes with the advanced 3-phase brushless DC motor that generate high flow rate and consumes 50% lower electrical power than normal AC motor.
– Built-in RCD | Life-saving device which cuts off power supply in the event of current leakage, protecting users from getting electric shock.
– Built-in Voltage Surge Protector | Protects internal electrical circuit from electrical surges and voltage spikes, including those caused by lightning.
– Built-in Flow Sensor | Cuts off power supply in the event where water flow is less than the rated flow that might result in internal overheating.
– Double Function Thermostat | Additional manual reset function in the event of abnormal temperature rise, protecting users from the risk of scalding.
– Triple Function Right Angle Stop Valve | Smooth 90° water flow control valve with regulator and built-in mesh filter to prevent foreign particles from flowing into the heating element, causing unwanted damages / blockages.
* No Pump Control | Pump cannot be turn off, and pump speed cannot be adjusted.
SHOWER ACCESSORIES INCLUDED:
– Matte Black Rain Shower Set
– Matte Black 5-Spray Shower Hand Set
– Matte Black Shower Hoses
– Matte Black Triple Function Right Angle Stop Valve
INSTALLATION GUIDE:
WARRANTY:
| Heater Electrical Rating | 4.5kW, 240Vac, 50Hz |
| Minimum Water Flow Rate | 2 litre / min |
| Maximum Water Pressure | 3.87kg f/cm² (55psi) |
| Water Temperature Control | Electronic Control |
| Water Connection | 15mm dia. (1/2″ BSP) |
| Dimension | 232mm x 380mm x 78mm (H) |
| Weight – Shower Rail | 2.0kg |
| Weight – Rainshower | 5.0kg |
| DC Pump Electrical Rating (Shower Rail) | 36W, 24Vdc |
| DC Pump Electrical Rating (Rainshower) | 48W, 24Vdc |
| Manufactured in | Malaysia: ISO 9001:2015 (Quality) & ISO 14001 (Environmental) certified factory |
| Product Certification | SIRIM & Suruhanjaya Tenaga certified appliance |
| Product Liability Insurance | RM1,000,000.00 |
